The LED Center Basket Troffer Retrofit Kit is designed to transform existing fluorescent troffers into high-performance LED fixtures without replacing the entire housing. Ideal for commercial retrofit projects, this solution combines modern aesthetics, exceptional efficiency, and installation flexibility while helping reduce project costs and installation time.

Available in 2′ × 2′ and 2′ × 4′ configurations, each retrofit kit features 5 selectable wattages and 5 selectable color temperatures, allowing contractors to customize light output and color temperature on-site to suit virtually any application. This flexibility simplifies inventory while ensuring the right lighting performance for every project.

A precision-engineered center basket diffuser provides smooth, uniform illumination with reduced glare and no visible flicker, creating a comfortable lighting environment for offices, schools, healthcare facilities, retail spaces, and commercial interiors. Standard 0-10V dimming allows seamless integration with building lighting controls, while optional microwave occupancy sensors and emergency battery backup provide additional energy savings and code compliance.

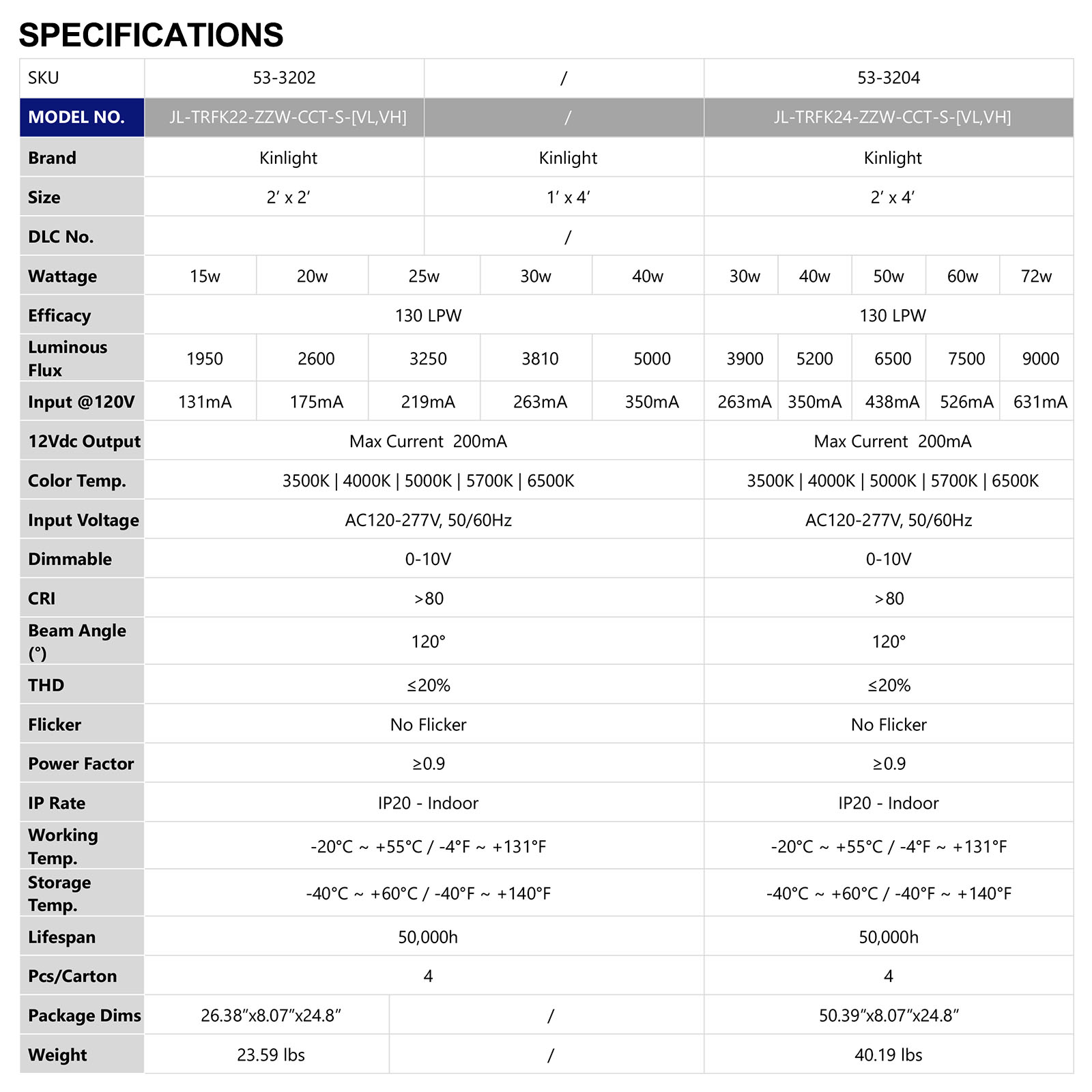

Built for long-term reliability, the Infinity Troffer Retrofit Kit delivers up to 130 lumens per watt, operates on universal 120-277V, and is rated for 50,000 hours of maintenance-free operation. ETL Listed, DLC Premium Listed, FCC compliant, and backed by a 5-year limited warranty, it provides a dependable solution for demanding commercial lighting retrofit projects.

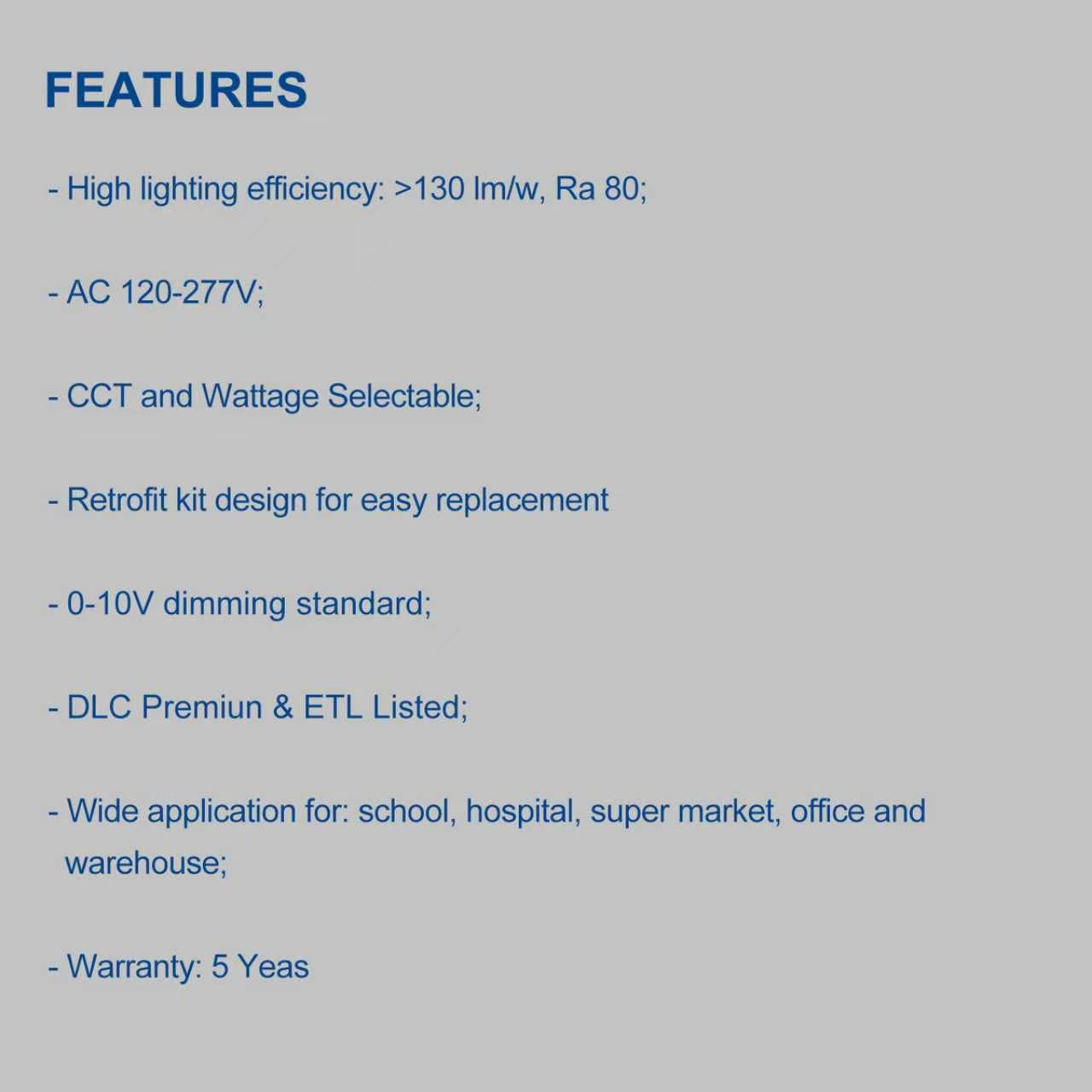

Key Features

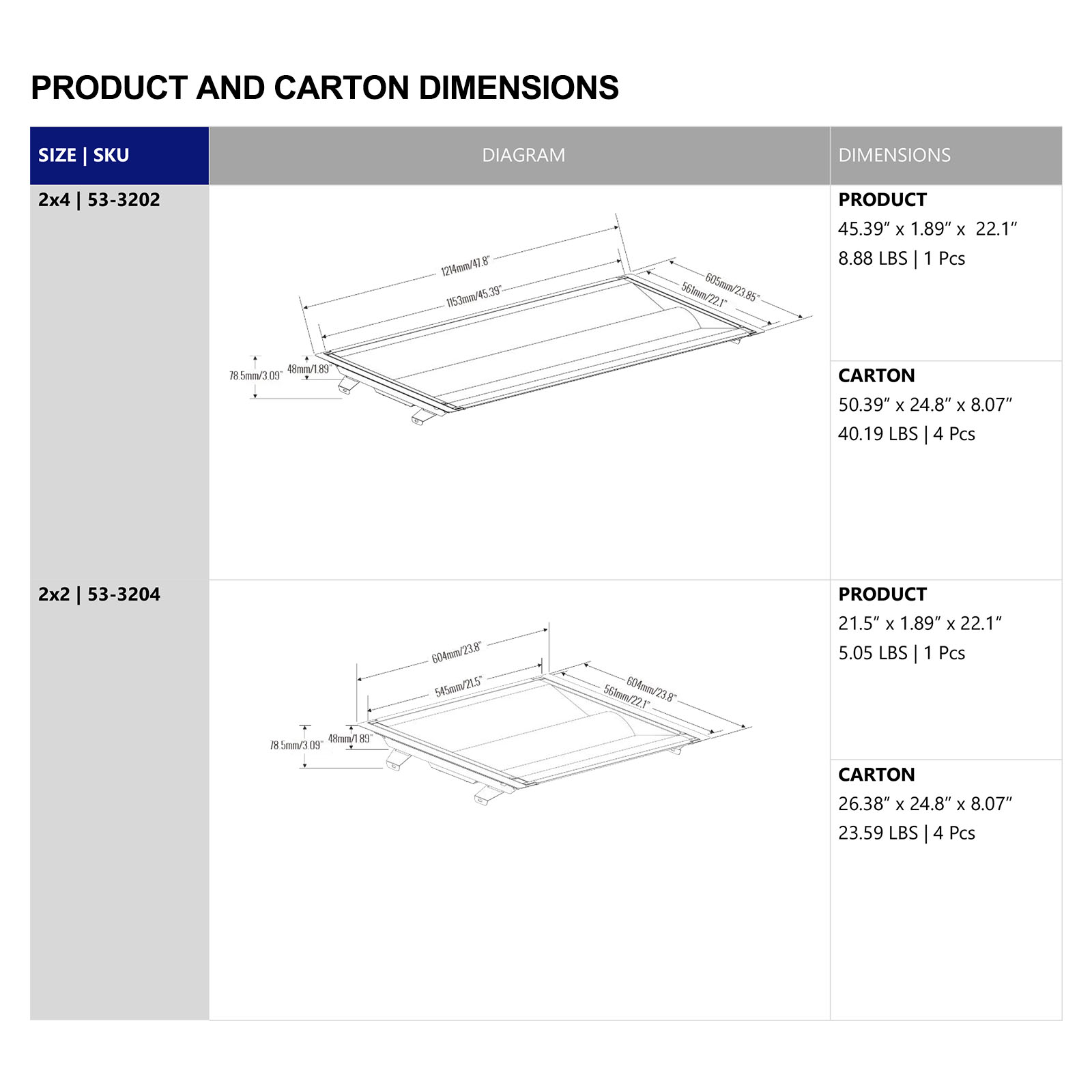

• Available in 2′ × 2′ and 2′ × 4′ retrofit kits
• 5 selectable wattages for maximum project flexibility

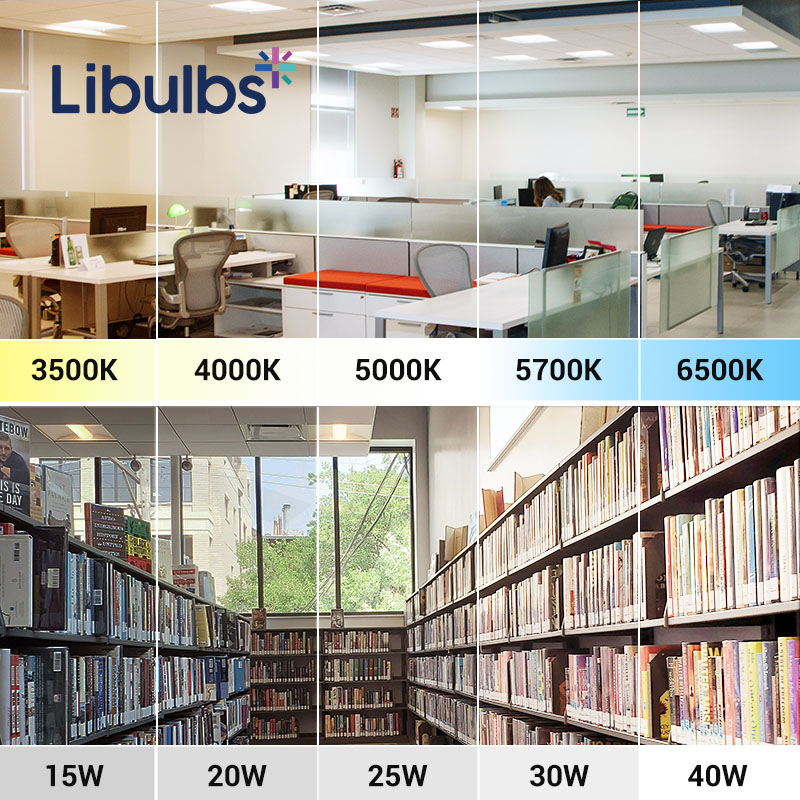

• 5 selectable CCTs: 3500K, 4000K, 5000K, 5700K, and 6500K
• High efficacy up to 130 LPW
• Universal 120-277V input
• Standard 0-10V dimming
• Smooth, uniform center basket illumination
• Low glare and flicker-free operation

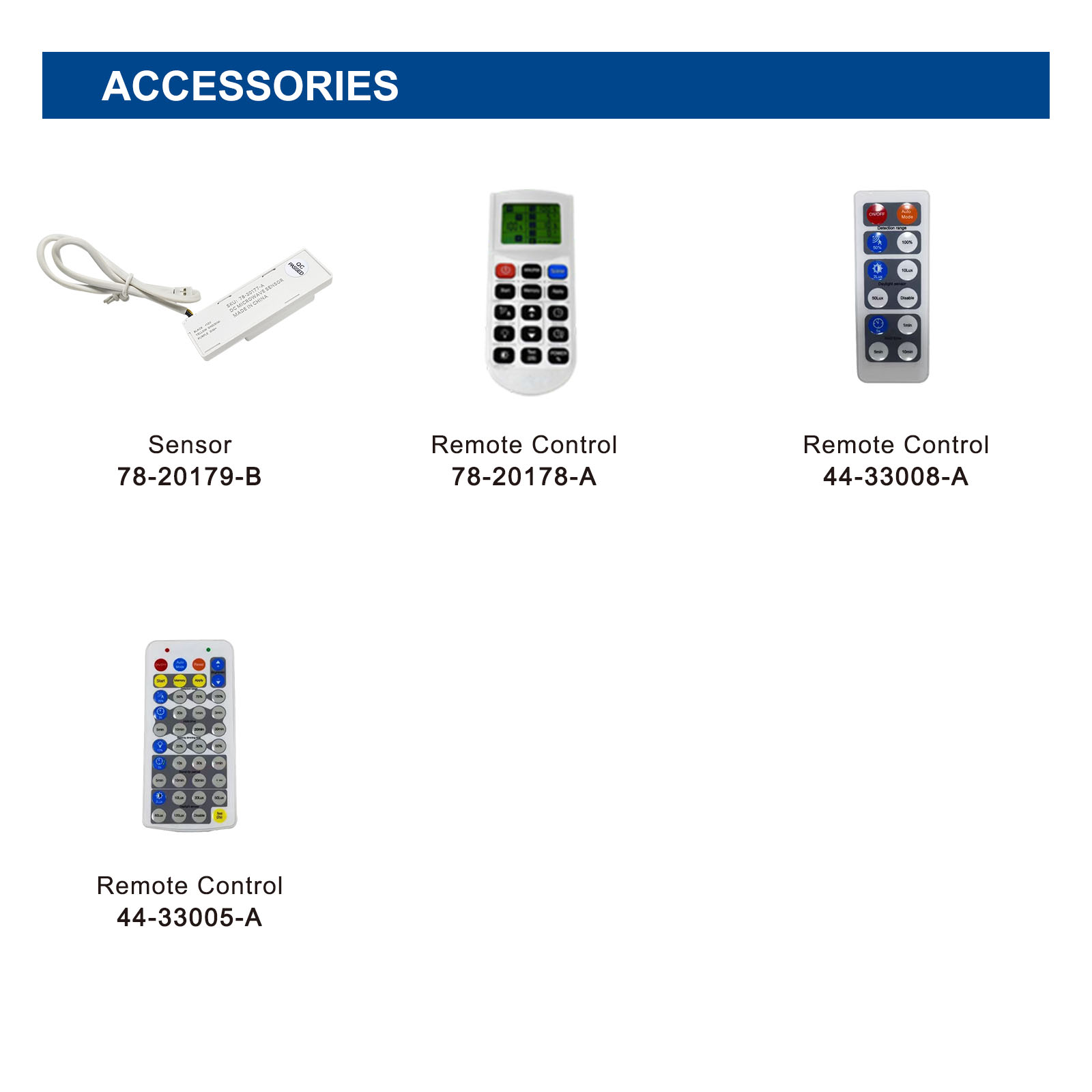

• Optional microwave occupancy sensor
• Optional emergency battery backup
• ETL Listed, DLC Premium Listed, FCC compliant
• Rated for 50,000-hour lifespan
• 5-year limited warranty

Common Applications

• Office buildings
• Schools and classrooms
• Hallways and corridors
• Bookstores
• Healthcare facilities
• Government buildings
• Commercial renovations
• Property management upgrades
• Retail stores
• Institutional lighting retrofits
• Existing fluorescent troffer conversions
