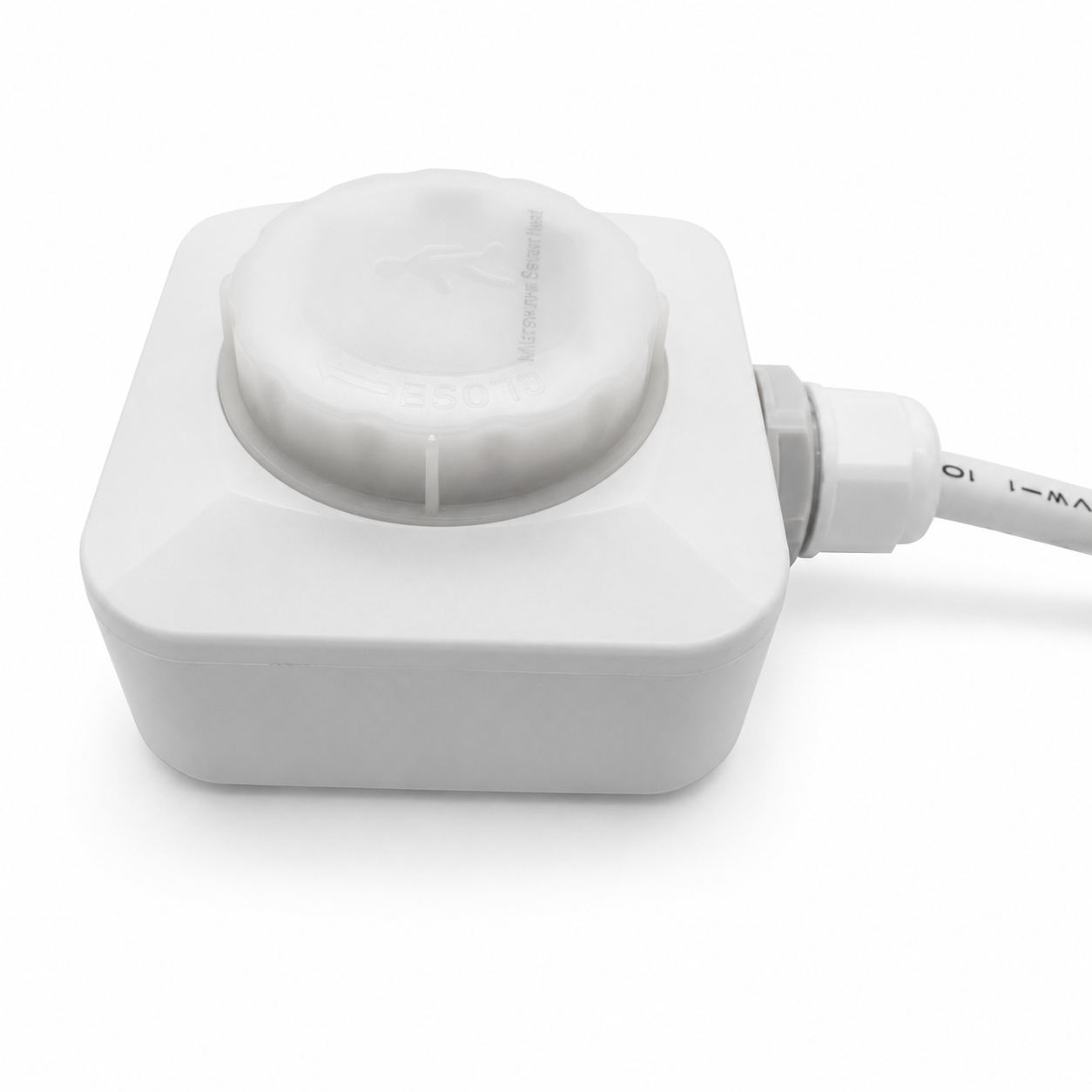

Wired Line Voltage Microwave Occupancy Sensor for High Bays – External Mount – 1-10V Bi-Level Dimming – Up to 39ft

Description

The 39-93017-A High Altitude Microwave Occupancy Sensor is a wired line-voltage sensor designed for high bay lighting applications. Built for indoor commercial and industrial spaces, it provides reliable motion-based lighting control with 1-10V dimming, helping fixtures reduce energy use through adjustable occupancy detection, daylight control, hold time, stand-by period, and stand-by dimming levels.

This sensor operates on 120-347VAC, 50/60Hz and is suitable for ceiling-mounted installations from 26.24 ft to 39.37 ft. With a maximum detection radius of 30 ft, adjustable detection area, selectable hold time, and daylight threshold settings, it is ideal for high-ceiling applications where automatic dimming and occupancy control are required.

The 39-93017-A supports remote programming and can be installed into linear high bay fixtures using a standard knock-out design. With the proper flexible installation bracket, it can also be used with UFO high bay fixtures. It is rated IP20, operates from -31°F to 140°F, and is listed in the specification with UL, RoHS, and CE certifications.

Key Features

• Sensor type: Microwave occupancy sensor
• Version: Dimmable Version
• SKU: 39-93017-A
• Control method: 1-10V dimming
• Operating voltage: 120-347VAC, 50/60Hz
• Mounting height: 26.24-39.37 ft, ceiling mounted
• Detection range: up to 30 ft radius
• Detection area: 25% / 50% / 75% / 100% adjustable
• Hold time: 5s / 30s / 1 min / 3 min / 5 min / 10 min / 20 min / 30 min
• Stand-by period: 0s / 10s / 30s / 1 min / 5 min / 10 min / 30 min / 60 min / +∞
• Stand-by dimming level: 10% / 20% / 30% / 50%
• Daylight threshold: 2Lux / 10Lux / 30Lux / 50Lux / 80Lux / 120Lux / Disable
• Remote programmable: compatible with 44-33005-A and 78-20178-A remotes
• Operating temperature: -31°F to 140°F
• IP rating: IP20
• Certifications listed: UL, RoHS, CE
• Warranty: 5 years

Common Applications

• Linear high bay fixtures
• UFO high bay fixtures
• Warehouses
• Factories
• Workshops
• Manufacturing facilities
• Gymnasiums
• Indoor high-ceiling commercial spaces
